| The Next Generation in Waste Water Treatment Technology Let us help you with wash pad design to meet all state DEP and EPA requirements with TURN-KEY DESIGN . |

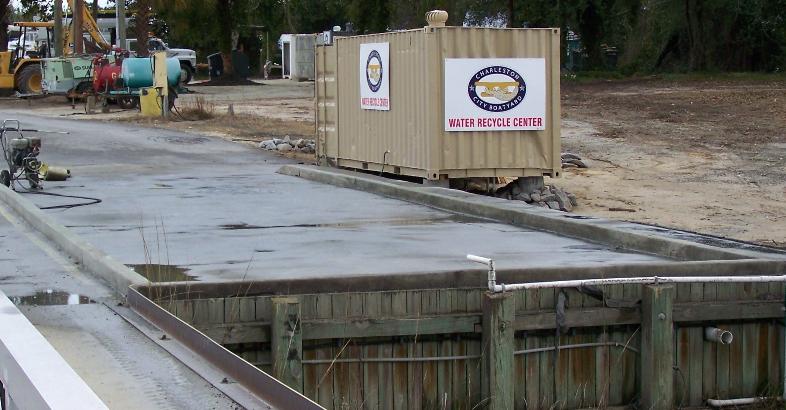

| The Next Generation worked with Charleston City Marina to restore this boat yard in Wando S.C., now Charleston City Boatyard. This Boatyard is the first Clean Boat yard in S.C. |
The Next Generation engineered the necessary
modification to this wash pad to meet EPA, and
state requirements for Storm Water NPDES permit
and Clean Boatyard certification as part of
TURN-KEY service provided by The Next
Generation.
modification to this wash pad to meet EPA, and
state requirements for Storm Water NPDES permit
and Clean Boatyard certification as part of
TURN-KEY service provided by The Next
Generation.

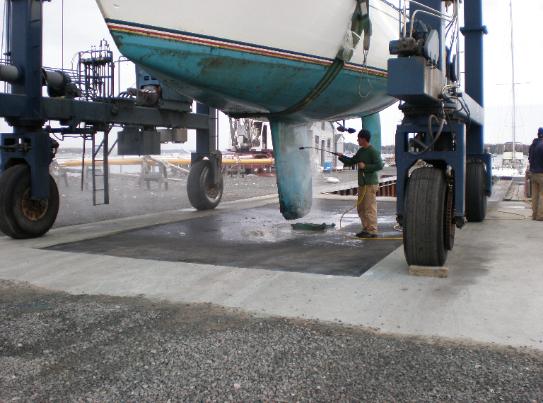

| HYDRAULIC TRAILER New wash pad designed for using screen trap and sump pump tank. The wash pad is sloped to the sump and the pad itself is raised above grade, this prevents rain water from running onto the pad and wash water from running off the pad. Sump box drains to PVC pipe next to recycle system then pumped to separator. |

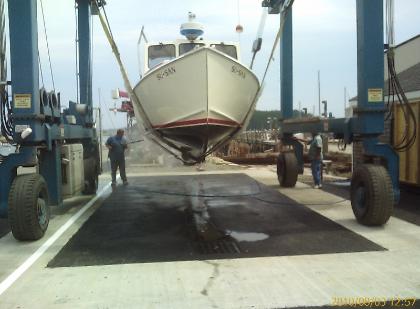

ASPHALT WASH PAD SALEM MA. INSPECTED BY EPA 2008 AND GIVEN THE OK FOR THIS DESIGN.
This marina has a large in ground sump and did not order the screen trap that was recommended. To
improve the solid collection and prevent solids from entering the sump a filter cloth is used under the
grating.

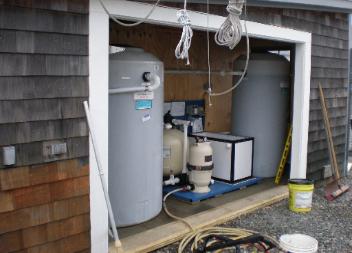

Existing building was modified to allow the recycle system installation , doors will be added for winter
protection.
This marina has a large in ground sump and did not order the screen trap that was recommended. To
improve the solid collection and prevent solids from entering the sump a filter cloth is used under the
grating.
Existing building was modified to allow the recycle system installation , doors will be added for winter
protection.

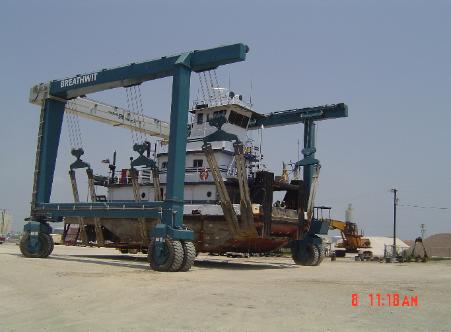

Wash pad designed by The Next Generation for
large 550 ton travel lift. Recycle system housed in
existing shipping container engineering provided
as part of turn-key service.
large 550 ton travel lift. Recycle system housed in
existing shipping container engineering provided
as part of turn-key service.

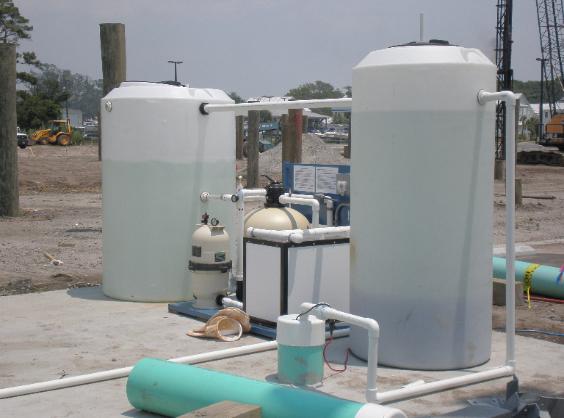

South Port Marina N.C. model Cl-500-BF installed next to wash
pad before building was built around unit. TURN-KEY project
engineered by The Next Generation.
pad before building was built around unit. TURN-KEY project
engineered by The Next Generation.
| 10 inch PVC pipe for sump pump |
| Concrete sump with filter cloth under grate |
| PVC pipe for sump pump next to recycle unit. |
Screen trap in sump
| The Next Generation in Waste Water Treatment Technology will work with you are your engineer to design a wash pad and equipment location as part of out TURN-KEY service. If you have a wash pad we can help you with the necessary modification's to meet the requirement of our recycle system, and make sure you meet the requirement for Storm Water NPDES permit. CONTACT Mike Givens, The Next Generation in Waste Water Treatment Technology for a comprehensive proposal on your upcoming project. 281-639-7860 or e-mail waste-w@swbell.net |
contanment wall around wash area
sump box with screen trap
| rain water overflow line |
| back wash line |
| line to recycle system pump tank under container |
| sump box with screen trap |

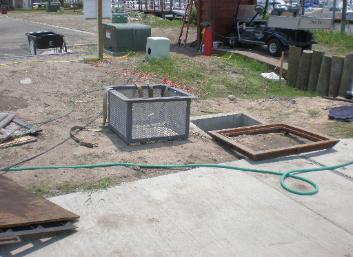

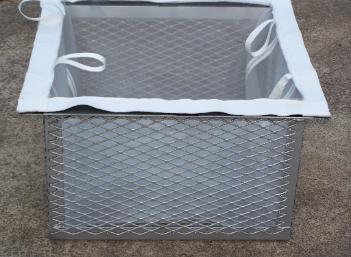

Screen trap before installing in sump
 | |  | |  | |  | |  | |  | |  | |  | |  |
sump with screen trap
10" PVC pipe for sump pump

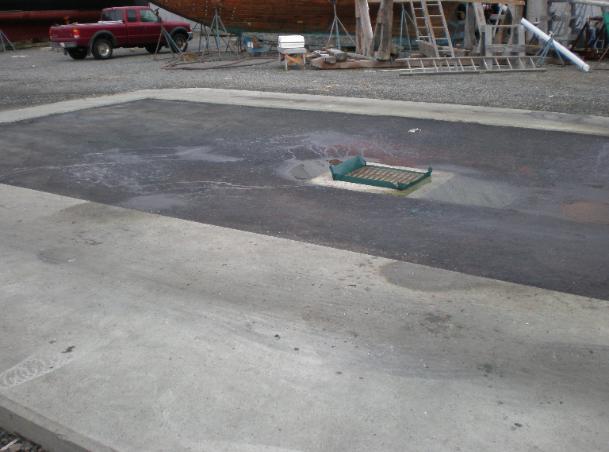

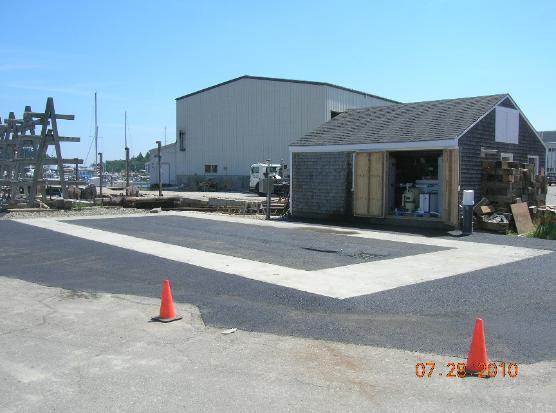

THE NEXT GENERATION worked with Jim Foley at Billings Diesel & Marine Service Stonington Maine to
design this wash pad. This wash pad is elevated above grade by adding new asphalt.The concrete is used
to support the travel lift, and provide a containment around the wash area.
design this wash pad. This wash pad is elevated above grade by adding new asphalt.The concrete is used
to support the travel lift, and provide a containment around the wash area.
The asphalt slopes
to the center and
because of the
natural slope of
the ground drains
to the end of the
wash pad. The
location of the
sump can be
located any where
within the wash pad
to the center and
because of the
natural slope of
the ground drains
to the end of the
wash pad. The
location of the
sump can be
located any where
within the wash pad
